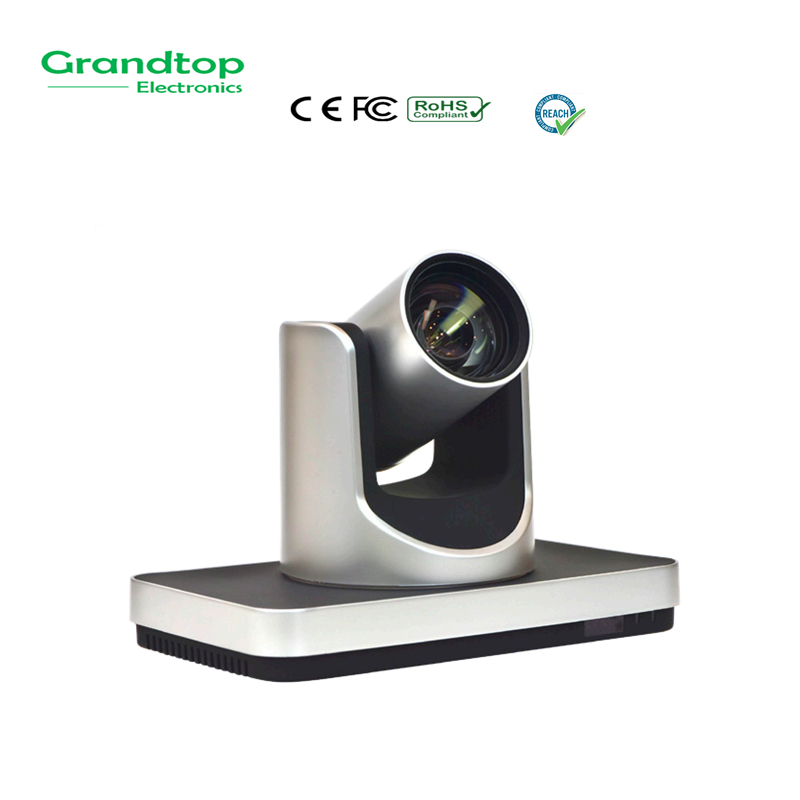

GT-V330
240*144*160
It adopts an integrated 72.5° wide-focus lens and 12x optical zoom.
It adopts a 1/2.8-inch, 2.07 million effective pixel high-quality HD CMOS sensor, which can achieve high-quality images with a maximum resolution of 1920x1080.
Pipeline image signal processing, no frame buffer, and delay as low as 10ms.
The CMOS image sensor with ultra-high signal-to-noise ratio can effectively reduce the image noise under low illumination. At the same time, 2D and 3D noise reduction algorithms are applied to greatly reduce the image noise. In the case of low illumination, the picture is still clean and clear. The ratio is as high as 55dB.
The output frame rate under 1080P can reach up to 60fps, which meets the demand for smoothness of the picture while ensuring high definition.
The Iridix exposure dynamic control algorithm based on the human eye model is adopted to make the image exposure uniform and strong sense of layering.
At the same time, it provides DVI-I (compatible with digital HDMI + analog YPbPr component) interface, SDI interface, and two channels of high-definition video can be output at the same time.
I n f ra re d re m ote co n t ro l s i g n a l t ra n s pa re n t transmission function. In addition to receiving its own dedicated remote control signal, it can also receive the user's infrared remote control signal and send it to the video conference terminal through the VISCA IN port.
Video resolution | 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50, 720p/30, 720p/29.97, 720p/25 |
sensor type | CMOS, 1/2.8 inch, 2.07 million effective pixels |
scanning method | progressive scan |
Lens focal length | 12x, f=3.5mm ~ 42.36mm, F1.8 ~ F2.8 |
Focusing method | automatic / manual |
Minimum illumination | 0.5 Lux @ (F1.8, AGC ON) |
Electronic shutter | 1/2s ~ 1/10000s |
White balance | Automatic, indoor, outdoor, one-button, manual, specified color temperature |
BLC | support |
Digital noise reduction | 2D&3D digital noise reduction |
Signal-to-noise ratio | ≥ 55dB |
Horizontal field of view | 72.5° ~ 6.9° |
Vertical field of view | 44.8° ~ 3.9° |
Horizontal rotation range | ±170° |
Ve r t i ca l rotat i o n range | -30° ~ +90° |
Pan speed range | 1.7° ~ 80.5° /s |
Ve r t i ca l rotat i o n speed range | 1.7° ~ 50° /s |
Flip | support |
Number of preset positions | 255 |
P r e s e t p o s i t i o n accuracy | 0.1° |
HD output |
1 c h a n n e l , D V I - I ( c o m p a t i b l e with digital HDMI + analog YPbPr component), some formats support VGA output; 1 c h a n n e l , 3 G - S D I : B N C t y p e , 800mVp-p, 75Ω, follow STMPTE 274M standard; |
C o m m u n i c a t i o n Interface |
1 channel, RS-232 IN: 8-pin small DIN, maximum distance: 30 meters, VISCA/ Pelco-D/Pelco-P protocol; 1 channel, RS-232 OUT: 8-pin small DIN, maximum distance: 30 meters, VISCA protocol; |
Power connector | JEITA type (DC IN 12V) |
Input voltage | DC 12V |
Input Current | 1.0A (maximum) |
Power consumption | 12W (max) |
Operating temperature | -10 ~ 40° C |
stored temperature | -40 ~ 60℃ |
size | 240mm x 144mm x 160mm |
colour | Silver & black |
weight | 1.65Kg |
