Superior-Quality Fast-Turnaround Turnkey-Service IP-Protection
ISO9001 ISO13485 IATF16949

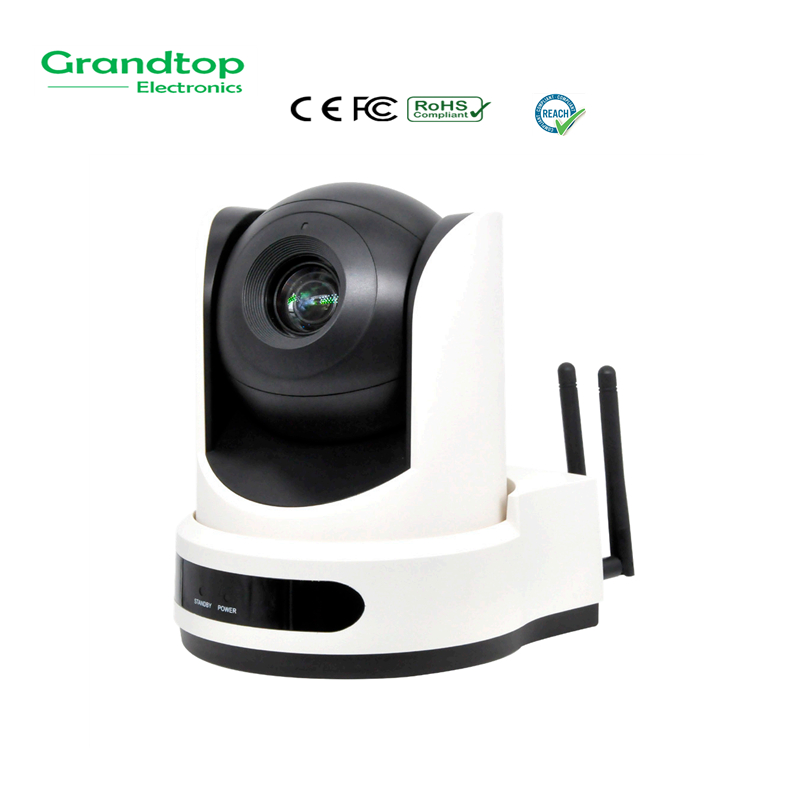

GT-V20W
141.3*153*163.6
Support wired network and wireless WIFI video transmission, easily cope with various occasions applications.
Built-in detachable large-capacity lithium battery, the battery can work for up to 6 hours.
The new CMOS image sensor with ultra-high signal-to-noise ratio can effectively reduce image noise under low illumination conditions, and at the same time, 2D and 3D noise reduction algorithms are applied to greatly reduce image noise. Even under ultra-low illumination conditions, the image remains clean and clear , The image signal-to-noise ratio is up to 55dB or more.
Using high-quality telephoto lens, the optical zoom reaches 10X.
Supports AAC audio encoding, with better sound quality and smaller bandwidth usage.
The high-quality HD CMOS sensor with 2.07 million effective pixels can achieve high-quality images with a maximum resolution of 1920x1080.
At the same time, it supports DC5V power supply, POE power supply and lithium battery power supply to meet the power supply needs of various usage scenarios.
Sensor | 1/2.8 inch, CMOS, 2.07 million effective pixels |
Scanning method | Line by line |
Lens focal length | 10x, f=4.7mm ~ 46.3mm, F1.8 ~ F2.8 |
Minimum illumination | 0.5 Lux @ (F1.8, AGC ON) |
Shutter | 1/30s ~ 1/10000s |
White balance | Automatic, indoor, outdoor, one-click, manual, specify color temperature |
Digital zoom | 16x |
Backlight compensation | Support |
Digital noise reduction | 2D&3D digital noise reduction |
Signal-to-noise ratio | ≥ 55dB |
Horizontal field of view | 58.5° ~ 6.5° |
Vertical field of view | 35.1° ~ 3.6° |
Horizontal rotation range | ±170 |
Vertical rotation range | -30° ~ +90° |
Pan speed range | 2.7° ~ 47° /s |
Vertical rotation speed range | 3.4° ~ 30° /s |
Flip horizontally and vertically | Support |
Image freezes | Support |
Number of preset positions | 255 |
Preset accuracy | 0.1° |
POE power supply | Support |
Video encoding standard | H.264 / MJEPG |
Video stream | The first stream, the second stream |
Resolution of the first stream | 1920x1080, 1280x720, 1024x576, etc. |
Resolution of the second stream | 720x576, 720x480, 320x240 etc. |
Video bitrate | 32Kbps ~ 20480Kbps |
Rate control | Variable bit rate, fixed bit rate |
Frame rate | 50Hz: 1fps ~ 25fps, 60Hz: 1fps ~ 30fps |
Audio compression standard | AAC |
Audio bitrate | 48Kbps |
Support agreement | TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, multicast, etc. |
Network interface | 1 channel, RG45: 10M/100M adaptive Ethernet. 1 channel, 2.4G/5G dual-band WIFI |
Audio interface | 1 channel, Line In, 3.5mm audio interface |
Wireless method | IEEE802.11a/b/g/n/ac |
Transmit power | 16dBm |
Antenna method | 2*2MIMO,Beamforming |
Channel bandwidth | 20/40/80MHz channel width selection |
Transmission data rate |
11b:11Mbps; 11g:54Mbps; 11n: Up to 150Mbps; |
Frequency range | 2.400GHz-2.497GHz, 4.9GHz-5.845GHz |
Transmission distance | 20 meters (no block or interference, depending on the environment) |
Input voltage | DC 5V/POE(802.3af) |
Input current | 1.0A (maximum) |
Operating temperature | -10 ~ 40° C |
Storage temperature | -40 ~ 60℃ |
Mean time between failures | >30000 hours |
Power consumption | 5W (maximum) |
Dimensions | 141.3mm x 153mm x 163.6mm |
Weight | 1.153Kg |
